Collaborative Robotics (Cobots): Safety & Spacing

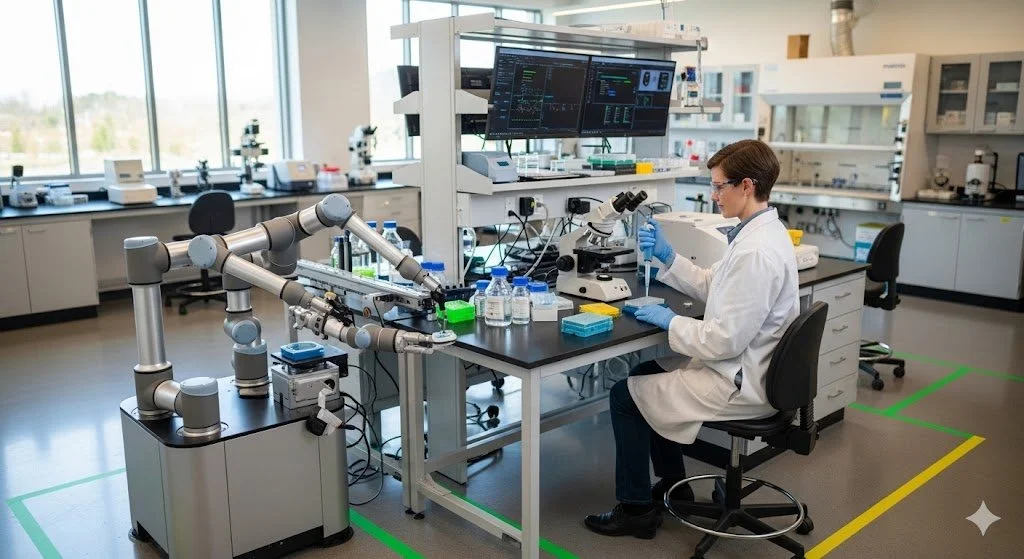

Designing for human-robot collaboration requires carefully planned spatial buffer zones that allow scientists and cobots to share the same workbench safely. | Credit: Gemini (2026)
Cobots are safe, but they still have elbows. Designing the ergonomic dance between scientist and machine requires a fundamental shift in how laboratory planners approach workspace layout. Unlike traditional industrial automation, which operates behind heavy physical cages and light curtains, collaborative robots (cobots) are designed to share the same bench space, breathe the same air, and handle the same microplates as their human counterparts.
This shift from isolation to integration brings incredible flexibility to life science workflows but introduces complex spatial and behavioral challenges. Designing for collaborative robot safety means calculating precise spatial "buffer zones," understanding the kinematics of the robotic arm, and adhering strictly to international safety standards governing human-machine physical contact. When the physical barrier is removed, the architecture and the layout must step in to provide the necessary safety envelope.
Facility managers and architects must rethink standard laboratory casework. When designing for automation, they must account for the cobot's maximum reach, potential pinch points, and the necessary physical clearance for a human scientist to step back instantly if the robot executes an unexpected motion path. The ultimate goal is to create a frictionless, shared environment where high-throughput robotics augments human intelligence without introducing physical hazards.
Key Takeaways
Spatial Buffer Zones: Designing shared workspaces requires calculating both the dynamic operating space of the cobot and the necessary clearance for human evasion.
ISO/TS 15066 Compliance: Adherence to international technical specifications is mandatory for defining safe force, speed, and pressure limits during human-robot contact.
Ergonomic Integration: Workbenches must often be deepened and reinforced to accommodate both the cobot's base footprint and the scientist's primary reach zones.
Visual Workspaces: Utilizing floor markings, LED status lights, and clear signage to define the cobot's operational envelope is critical for situational awareness.
How do you design spatial buffer zones for cobots?
When caged robots are eliminated, the architecture itself must become the safety perimeter. Designing spatial buffer zones requires a detailed understanding of the cobot's "maximum space"—the absolute furthest reach of the arm and its end-effector (gripper)—versus its "operating space," which is the tightly programmed daily routine. Even highly intelligent cobots equipped with advanced force-torque sensors need physical room to operate and safely halt.
Laboratory planners cannot simply place a cobot on a standard bench and assume it is safe just because it bears a "collaborative" label. Even if the arm is designed to stop upon light impact, a collision in a confined, poorly planned space can trap a human operator against a wall, a biosafety cabinet, or another piece of heavy equipment. Therefore, the layout must ensure that the human always has an unencumbered escape path, eliminating all hard pinch points within the cobot's maximum reach.
A best practice in robot workspace design is to create a tiered spatial layout. This includes the "Cooperative Workspace," where direct human-robot handoffs occur; the "Restricted Space," where the cobot operates at higher speeds but slows down when sensors detect a human entering; and the "Evasion Zone," a clear, trip-free floor perimeter allowing the human to step back safely.
What role does ISO/TS 15066 play in human-robot collaboration?
ISO/TS 15066 is the defining technical specification that governs the safety of collaborative industrial robot systems. Before this specification, safety standards generally required strict physical separation between humans and moving machinery. ISO/TS 15066 introduced the framework for "Power and Force Limiting" (PFL), which mathematically calculates exactly how much force and pressure a cobot can safely impart to various parts of the human body during an accidental collision.
For laboratory designers, complying with this standard directly influences the physical environment. If a cobot is handling hazardous reagents or sharp objects, the speed limits dictated by ISO/TS 15066 might mean the cobot must operate very slowly, potentially causing a workflow bottleneck. To counter this, designers might implement overhead LiDAR scanners or safety laser scanners that allow the cobot to move quickly when the human is far away, instantly dropping to safe collaborative speeds only when the human enters the shared zone.
Understanding these safety limits also influences the selection of lab furniture and finishes. Hard, sharp edges on workbenches must be eliminated in collaborative zones. If a cobot accidentally pins a scientist's arm against a sharp 90-degree corner, the pressure increases drastically, raising the risk of injury and violating ISO/TS 15066 thresholds. Smooth, radiused edges on all shared surfaces are practically mandatory.
Comparing Workspace Requirements: Caged vs. Collaborative Robots
The transition to collaborative setups radically alters the floorplan and spatial allocation in a laboratory facility:
Physical Footprint: Caged industrial robots require a massive, dedicated footprint (often 100+ sq ft) enclosed by Lexan or steel fencing. Cobots require minimal dedicated space, as their footprint inherently overlaps with the human workspace on the benchtop.
Speed and Throughput: Caged robots operate at extremely high speeds, maximizing throughput but prohibiting human interaction. Cobots operate at restricted speeds when humans are present, prioritizing collaborative safety over maximum velocity.
Safety Infrastructure: Caged systems rely on hard-wired safety interlocks on physical doors. Cobot safety relies on internal force-limiters, software-defined boundaries, and external LiDAR or camera-based area scanners.
Flexibility and Reconfiguration: Moving a caged robot requires structural demolition and rewiring of safety circuits. Cobots can often be unbolted, moved to a new bench on a mobile cart, and reprogrammed for a different assay within a single shift.
How does cobot integration impact bench ergonomics?
Traditional laboratory casework is designed exclusively around human anthropometrics. The introduction of a multi-axis cobot requires a hybrid ergonomic approach. Most standard laboratory benches are 30 inches deep; however, a cobot's base and its reach often require a deeper bench (36 to 48 inches) to ensure the robot can access necessary instruments without forcing the human to lean awkwardly out of the way or strain their back.
Furthermore, the placement of the cobot must account for handedness and workflow directionality. If a human scientist is processing plates on the left side of a station, the cobot should ideally approach from the right to avoid crossing paths and creating collision risks. The "dance" between the two must be choreographed in the physical layout, ensuring that common tools, incubators, and waste bins are easily accessible to both parties without excessive or unnatural reaching.
Finally, the structural integrity of the bench itself must be evaluated. While cobots are generally lighter than traditional industrial robots, their rapid, multi-axis acceleration and deceleration can induce harmonic micro-vibrations into the casework. This can disrupt sensitive analytical balances, optical microscopes, or delicate assays sharing the same continuous surface, necessitating isolated vibration tables or reinforced frame designs.
Expert FAQ: Collaborative Robot Safety
Q: Do cobots completely eliminate the need for physical guarding?
A: Not always. If the cobot is handling highly toxic chemicals, sharp objects (like syringe needles), or operating at very high speeds to meet throughput demands, risk assessments often require transparent physical guarding or laser light curtains, regardless of the robot's "collaborative" rating.
Q: How do we visually communicate safe zones to laboratory staff?
A: Visual communication is critical for spatial awareness. Planners use colored epoxy floor markings or high-durability tape to delineate the cobot's maximum reach. Additionally, many cobots feature programmable LED rings at their joints that glow green for safe, yellow for human-detected (slow mode), and red for emergency stops.
Q: Can a cobot share a biosafety cabinet (BSC) with a human?
A: Yes, but with extreme caution. The physical movement of the cobot's arm can easily disrupt the delicate laminar airflow curtain of the BSC, risking containment failure. Custom-designed BSCs with wider sashes, specialized integration ports, or rigorous aerodynamic testing are required for true collaborative work inside a hood.
